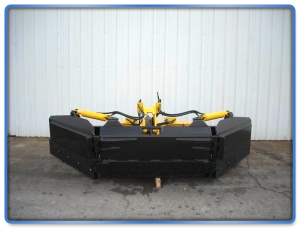

Wing Model 46 Non-Articulating


Wing Model 46 Non-Articulating

Wing Model 46 Non-Articulating
Wing Model 46 Non-Articulating Schematic

Wing Model 46 Non-Articulating Schematic

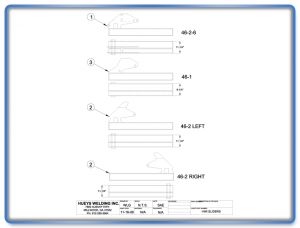

Wing Model 46-2 Standard Slider Assembly Schematic
Wing Model 46-2 Standard Slider Assembly Schematic

Download In PDF Format Click To Download Wing Model 46-2
Standard Slider Assembly
Schematic in PDF Format


Click Images To Enlarge

Download In PDF Format Click To Download Wing Model 46 Non-Articulating Schematic in PDF Format

Wing Model 46 Non-Articulating Parts List

ITEM NO.

QTY. 1 UNIT

PART NO.

DESCRIPTION
 1* 1 HWW- 07843540 WING MOUNT YOKE
 2* 1 HWW- 07843660 SLIDER BOX
3 1 HWW- 0462 WING ASSEMBLY
4 1 HWW- 07843930 R.H. WING TEMPLATE
 5* 1 HWW- 07844040 CYL. 2″ BORE X 8″ STROKE   WING TILT
6 1 HWW- 07843970 L.H. WING TEMPLATE
7 1 HWW- 01469940 TUBE TIE BAR
8 1 HWW- 07819710 CYL. 2 1/2″ BORE X 14″ STROKE DOOR HINGE
9 1 HWW- 01481300 TIE BAR PIN  1/2 X 4 BOLT
10 1 HWW- 01469930 CLEVIS TIE BAR
11 2 HWW- 07000770 DOOR HINGE PIN  1 1/2 X 16 3/8
12 2 HWW- 07844240 WEAR BLADE RH
13 1 HWW- 07862880 2″ PIN  SLIDER TO WING  2 X 15 1/4″
 14* 1 HWW- 07819650 CYL. 3″ BORE X 27″ STROKE  WING EXTEND
15 2 HWW- 07844170 WEAR BLADE  LH
17 2 HWW- 01483900 CLAMP BOTTOM WELD ON
17 2 HWW- 01485900 CLAMP TOP BOLT ON
18 4 HWW- 01501060 BOLT 3/4″ X 4 1/2″
19 2 HWW- 07862530 PLATE SKID   OUT SIDE HEADER 50″
20 2 HWW- 07862540 PLATE SKID   INSIDE HEADER 97″
       * NO ILLUSTRATION

Wing Model 46 Articulating Slider Box Parts List

ITEM NO.

QTY. 1 UNIT

PART NO.

DESCRIPTION
1 1 HWW- 07412620 WING SLIDER BOX  46-6  STD. & 925
2 1 HWW-07001670 WING SLIDER BOX  46-2 LEFT HAND
2 1 HWW-07001660 WING SLIDER BOX  46-2 RIGHT HAND
3 1 HWW-07843660 WING SLIDER BOX  46-1   9 1/4″
